Product Features

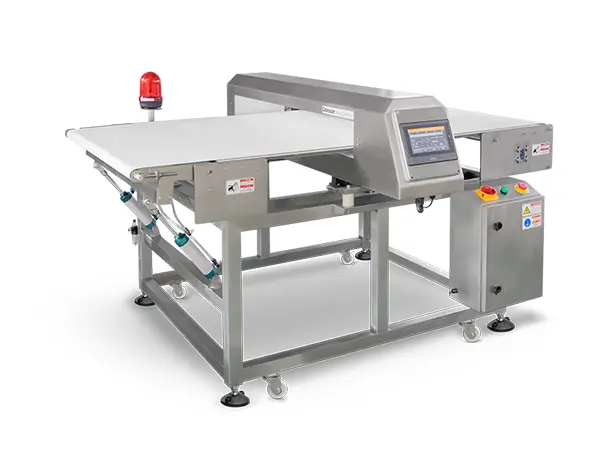

FMT-Series conveyor belt type metal detector can detect all metal including Ferron, non-ferrous and even stainless steel which is very difficult to be detected.
The frame adopts the structure of complete welding. Detection head is not easy to accumulate dust and meet HACCP requirements.
The contact parts are made of food grade materials to minimize product contamination. The frame can be quickly disassembled, cleaned, and reassembled.
Increased to maximum storage of 99 kinds of products. Different products can be set to different sensitivity to save costs.

Technical Specifications

Model	DMD-Series (400s/600s/800s/Max)
Detection width	400mm/600mm/800mm/1000mm
Detection height	80mm/100mm
Sensitivity	Fe≥Φ0.8mm; Non-Fe≥Φ1.0mm; SUS≥Φ1.5mm (No loading product)
Touch screen	7" TFT (Kinco)
Sensitivity adjustment	Auto learning
Alarm Method	Alarm/Stop belt/Reject
Rejection	Drop flap
Product storage	99 kinds
Load capacity	0-10kg
Belt width	350mm/550mm/750mm/950mm
Belt speed	25m/min (customizable)
Belt off the ground	700mm (customizable)
Belt length	1600mm/1800mm/2000mm (customizable)
Conveying direction	From left to right (customizable)
Machine material	Stainless steel 304
Operation language	Traditional Chinese/English
Dimensions	1800×1280×920mm (800s, 800×100mm)
Net weight	180kg
Power supply	110V/50-60Hz, 200W

Sensitivity

Detection width		400mm/600mm/800mm/1000mm
Detection height		80mm	100mm
Sensitivity *	Ferrous	≥Φ0.8mm	≥Φ1.0mm
	Non-Ferrous	≥Φ1.0mm	≥Φ1.2mm
	SS (304)	≥Φ1.5mm	≥Φ2.0mm

*The technical parameter above namely is the result of sensitivity by detecting only the test sample through the detection head, not with products. The actual sensitivity would be affected according to the products being detected, working condition and the different positions the metal mixed with.
