Product Features

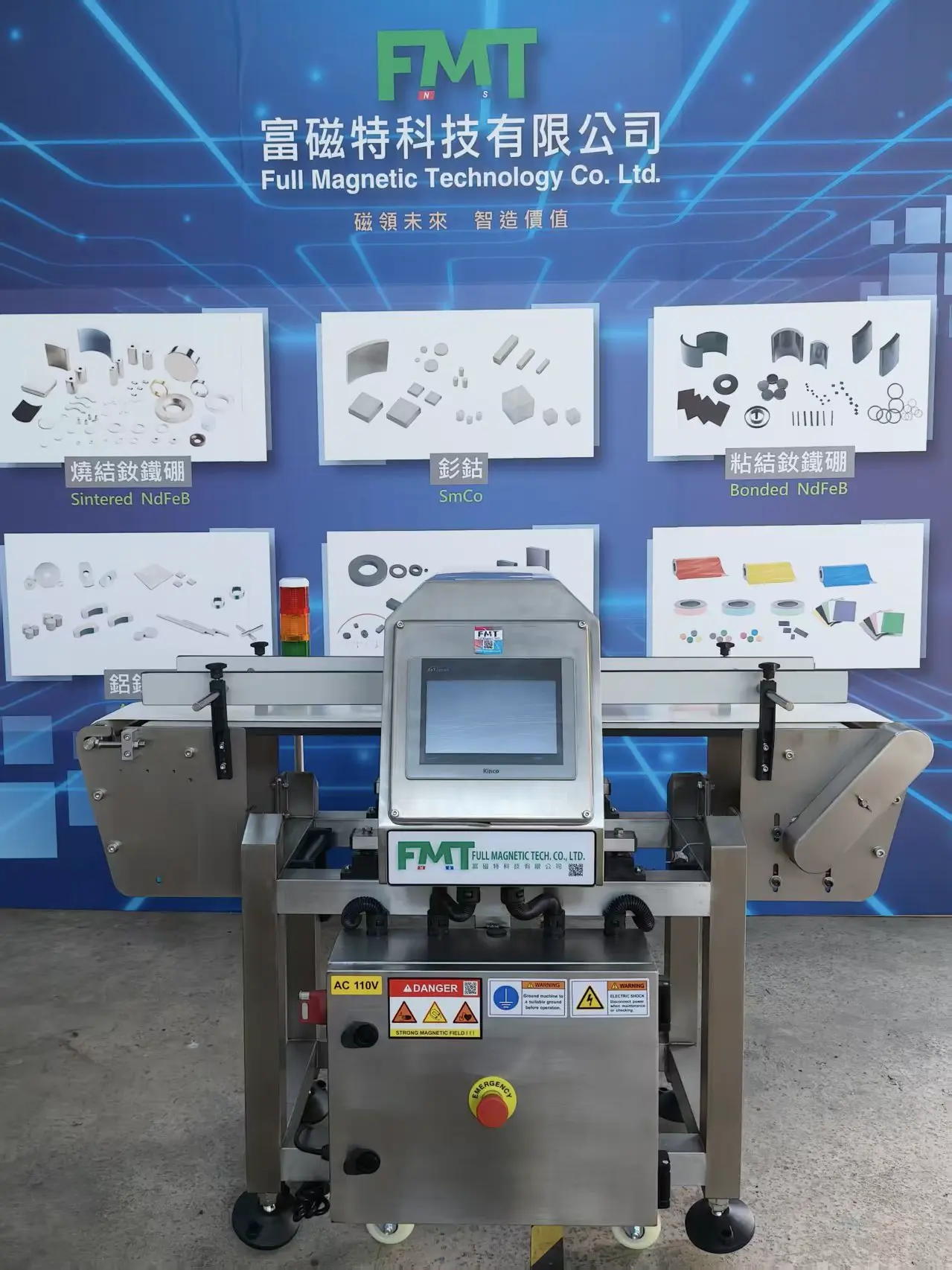

FMT-Series conveyor belt type metal detector can detect all metal including Ferron, non-ferrous and even stainless steel which is very difficult to be detected.
The frame adopts the structure of complete welding. Detection head is not easy to accumulate dust and meet HACCP requirements.
The contact parts are made of food grade materials to minimize product contamination. The frame can be quickly disassembled, cleaned, and reassembled.
Increased to maximum storage of 99 kinds of products. Different products can be set to different sensitivity to save costs.

Technical Specifications

Model	DMD-Series (200s/300s/400s)
Detection width	200mm/300mm/400mm
Detection height	50mm/80mm/100mm/120mm/150mm/180mm/200mm
Sensitivity	Fe≥Φ0.8mm; Non-Fe≥Φ1.0mm; SUS≥Φ1.5mm (No loading product)
Touch screen	7" TFT (Kinco)
Sensitivity adjustment	Auto learning
Alarm Method	Alarm and stop belt
Product storage	99 kinds
Load capacity	0-10kg
Belt width	150mm/250mm/350mm
Belt speed	25m/min (customizable)
Belt off the ground	700mm (customizable)
Belt length	1000mm/1200mm/1400mm (customizable)
Conveying direction	From left to right (customizable)
Machine material	Stainless steel 304
Operation language	Traditional Chinese/English
Dimensions	1220×780×920mm (300s, 300×120mm)
Net weight	120kg
Power supply	110V/50-60Hz, 200W

Sensitivity

Detection width		200/300/400mm
Detection height		50mm	80mm	100mm	120mm	150mm	180mm	200mm
Sensitivity	Ferrous	≥Φ0.6mm	≥Φ0.7mm	≥Φ0.8mm	≥Φ0.8mm	≥Φ1.0mm	≥Φ1.2mm	≥Φ1.2mm
	Non-Ferrous	≥Φ0.8mm	≥Φ1.0mm	≥Φ1.0mm	≥Φ1.2mm	≥Φ1.5mm	≥Φ1.5mm	≥Φ1.5mm
	SUS (304)	≥Φ1.2mm	≥Φ1.5mm	≥Φ1.5mm	≥Φ1.5mm	≥Φ2.0mm	≥Φ2.0mm	≥Φ2.0mm

*The technical parameter above namely is the result of sensitivity by detecting only the test sample through the detection head, not with products. The actual sensitivity would be affected according to the products being detected, working condition and the different positions the metal mixed with.
