Working Principle

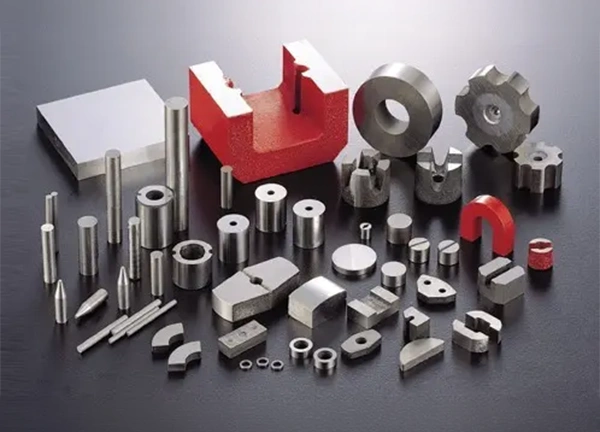

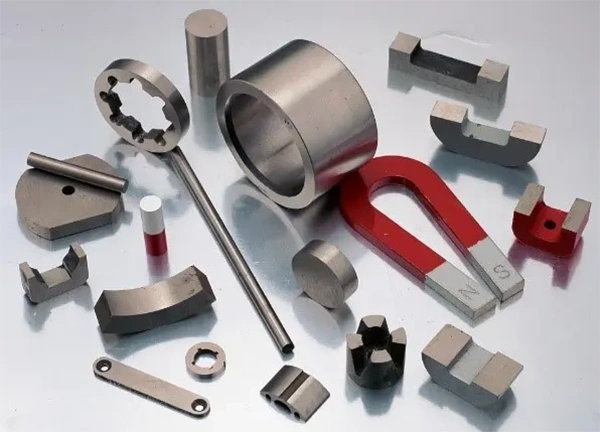

AlNiCo is mainly composed of aluminum, nickel and cobalt, and has excellent temperature stability and high residual magnetic flux density. It has high magnetic properties and is made by casting or sintering.Cast magnets can create complex shapes that other magnets cannot, such as horseshoes. Sintered AlNiCo has slightly lower magnetic properties but better mechanical properties.

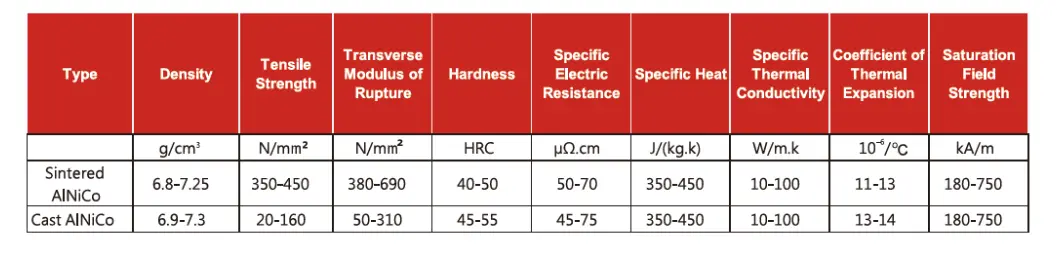

Physical Properties

Process

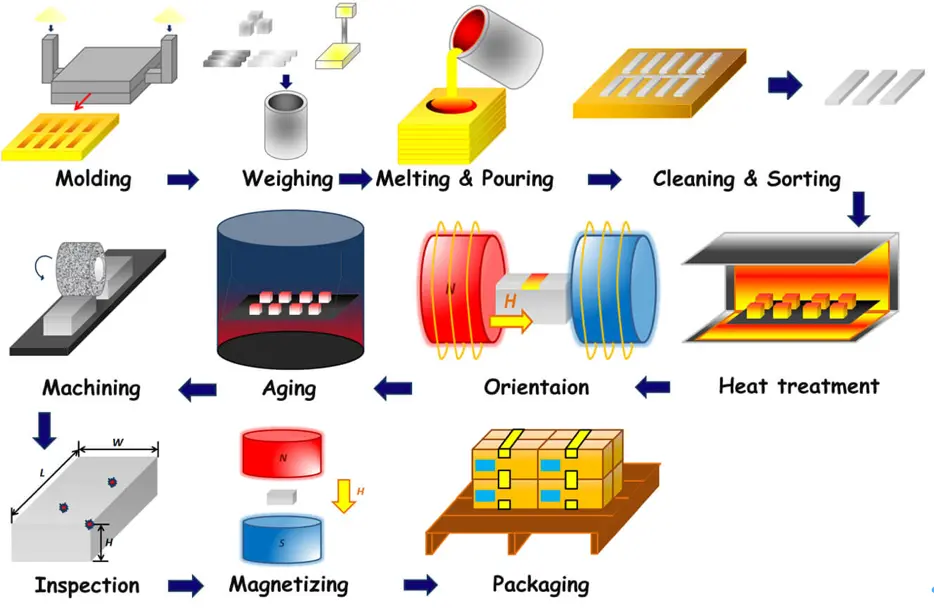

Cast AlNiCo

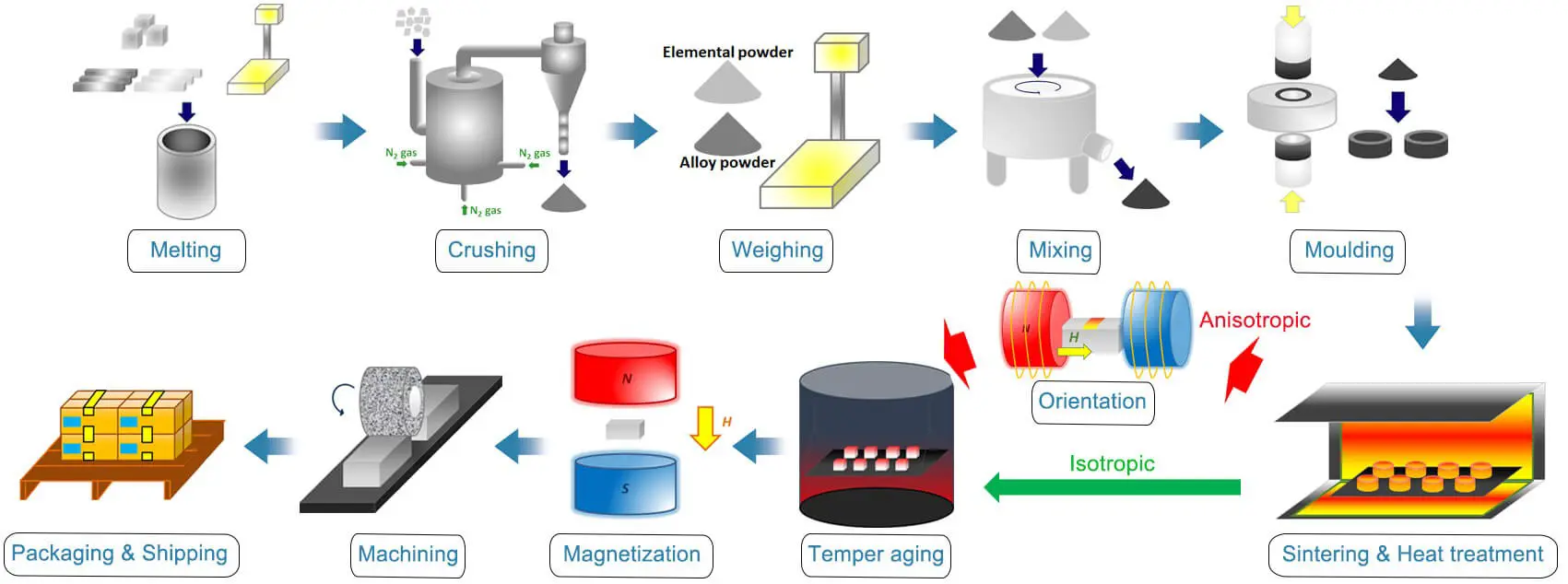

Sintered AlNiCo

Performance-Cast AlNiCo Magnets

Grade	Item	Remanence (Br)		Coercivity (Hcb)		Max. Energy Product (BH)max		(TC)	Density (D)	Max. Working Temperature (Tw)	Remark
Grade	Item	Gs	mT	Oe	kA/m	MGOe	kJ/m³	℃	g/cm³	℃	Remark
AlNiCo3	LN10	6000	600	500	40	1.2	10	810	6.9	450	Isotropy
AlNiCo2	LNG13	7000	700	600	45	1.6	12.8	810	7.2	450
AlNiCo8	LNGT18	5800	580	1250	100	2.2	18	860	7.3	550
AlNiCo5	LNG37	12000	1200	600	45	4.65	37	850	7.3	525	Anisotropy
AlNiCo5	LNG40	12500	1250	600	45	5	40	850	7.3	525
AlNiCo5	LNG44	12500	1250	650	52	5.5	44	850	7.3	525
AlNiCo5DG	LNG52	13000	1300	700	56	6.5	52	850	7.3	525
AlNiCo5-7	LNG60	13500	1350	740	59	7.5	60	850	7.3	525
AlNiCo6	LNGT28	10000	1000	720	57.6	3.5	28	850	7.3	525
AlNiCo8HC	LNGT36J	7000	700	1750	140	4.5	36	860	7.3	550
AlNiCo8HC	LNGT40J	7500	750	1800	144	5	40	860	7.3	550
AlNiCo8	LNGT38	8000	800	1380	110	4.75	38	860	7.3	550
AlNiCo8	LNGT40	8200	820	1380	110	5	40	860	7.3	550
AlNiCo8	LNGT44	8500	850	1500	120	5.5	44	860	7.3	550
AlNiCo9	LNGT60	9000	900	1380	110	7.5	60	860	7.3	550
AlNiCo9	LNGT72	10500	1050	1400	112	9	72	860	7.3	550
AlNiCo9	LNGT80	10800	1080	1500	120	10	80	860	7.3	550
AlNiCo9	LNGT88	11000	1100	1500	120	11	88	860	7.3	550
AlNiCo9	LNGT92	11200	1120	1500	120	11.5	92	860	7.3	550
AlNiCo9	LNGT96	11500	1150	1500	120	12	96	860	7.3	550

Performance-Sintered AlNiCo Magnets

Grade	Item	Remanence (Br)		Coercivity (Hcb)		Max. Energy Product (BH)max		(TC)	Max. Working Temperature (Tw)	(Remark)
Grade	Item	Gs	mT	Oe	kA/m	MGOe	kJ/m³	℃	℃	(Remark)
AlNiCo3	FLN8	5000	500	500	40	1.00	8	760	450	Isotropy
AlNiCo2	FLNG12	7000	700	600	48	1.50	12	810	450
AlNiCo7	FLNGT18	6000	600	1130	90	2.20	18	860	450
AlNiCo5	FLNG34	12000	1200	600	48	4.25	34	890	450	Anisotropy
AlNiCo6	FLNGT28	10500	1050	700	56	3.50	25	850	450
AlNiCo8	FLNGT38	8000	800	1500	120	4.75	38	850	450
AlNiCo8	FLNGT42	8800	880	1500	120	5.25	42	820	450
AlNiCo8HC	FLNGT33J	7000	700	1750	140	4.13	33	850	450
AlNiCo8	FLNGT36J	7000	700	1750	140	4.50	36	850	450
