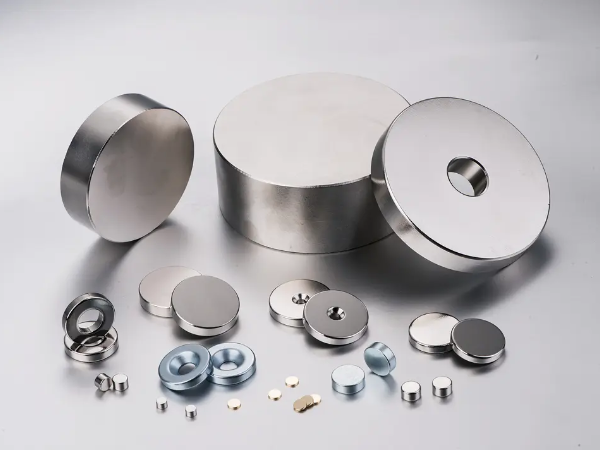

Sintered NdFeB is made of neodymium, iron and boron. Among the ingredients, Nd2Fe14B has high magnetic properties. Jingda's magnetic energy product is more than 10 times that of ferrite magnets; the maximum working temperature can reach 250 degrees Celsius.
NdFeB has excellent mechanical properties and can be used in non-returning processing modes such as drilling, cutting, wire cutting, etc.

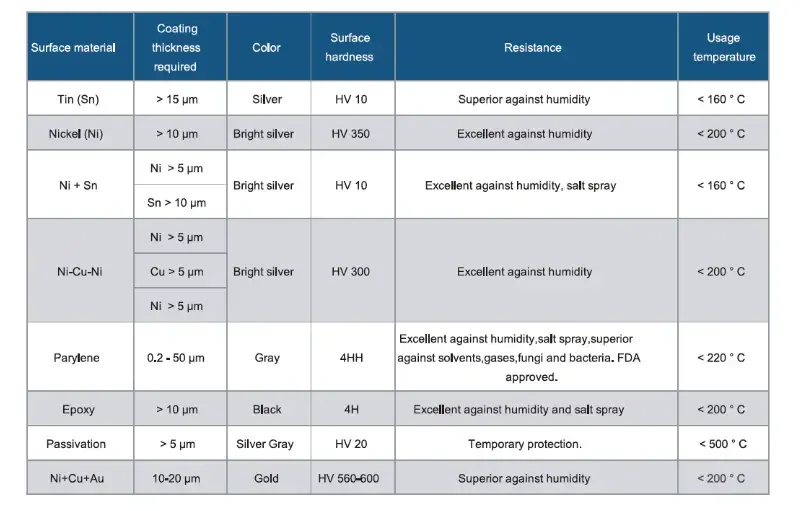

High corrosion resistance can be achieved through different surface coatings such as zinc, nickel, tin, silver, gold, phosphor and spray epoxy resin.
NdFeB is widely used in various industries due to its superior performance. It is mainly used in micromotors, special motors, permanent magnet instruments, electronics industry, automobile industry, petrochemical industry, nuclear magnetic resonance, audio equipment, magnetic levitation systems, magnetic transmission structures and magnetic therapy equipment, etc.

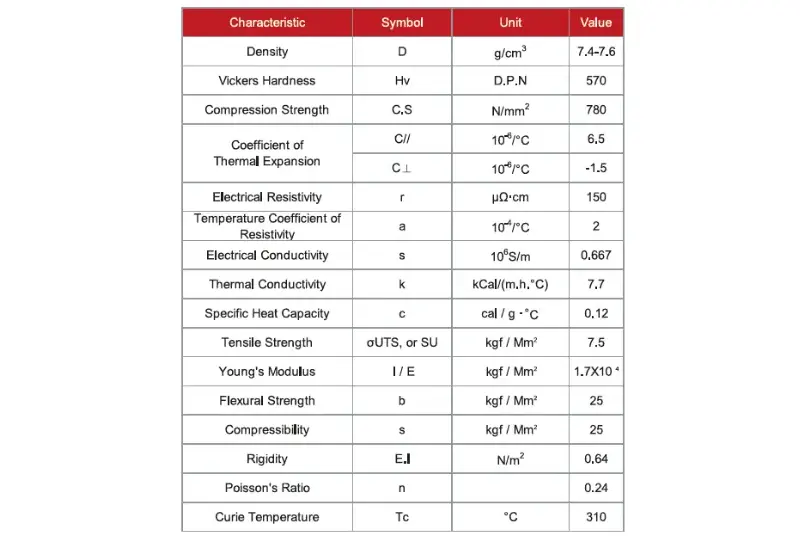

Physical Properties

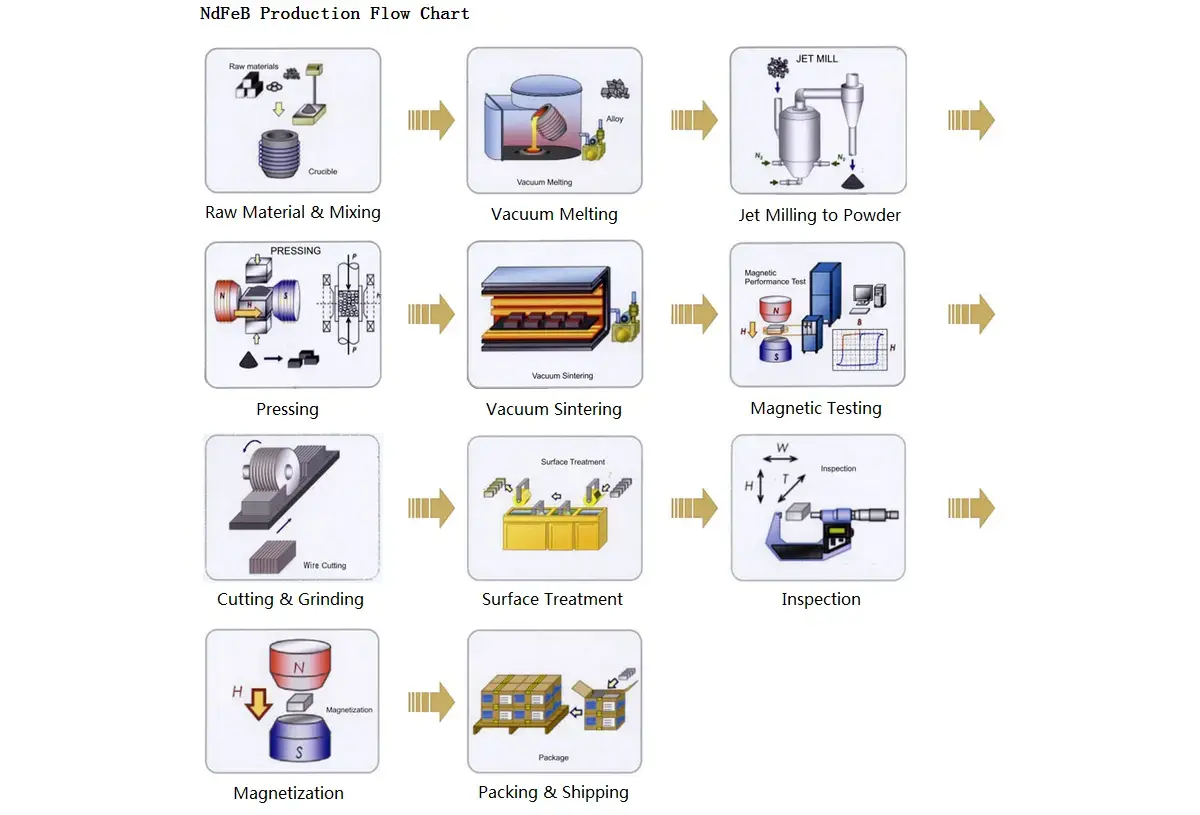

Manufacturing process

External features

Performance - N Series

(Grade)	Remanence (Br)		Coercivity (Hcb)		Intrinsic Coercive Force (Hci)		Max. Energy Product (BH)max		Density (D)	Max. Working Temperature (Tw)
(Grade)	kGs	T	kOe	kA/m	kOe	kA/m	MGOe	kJ/m³	g/cm³	℃
N35	11.8–12.3	1.18–1.23	≥10.9	≥868	≥12.0	≥955	33–36	263–287	7.4–7.5	≤80
N38	12.2–12.6	1.22–1.26	≥11.3	≥899	≥12.0	≥955	36–39	287–310	7.4–7.5	≤80
N40	12.6–12.9	1.26–1.29	≥11.6	≥923	≥12.0	≥955	38–41	302–326	7.4–7.5	≤80
N42	12.9–13.2	1.29–1.32	≥11.6	≥923	≥12.0	≥955	40–43	318–342	7.4–7.5	≤80
N45	13.2–13.7	1.32–1.37	≥11.6	≥923	≥12.0	≥955	43–46	342–366	7.4–7.5	≤80
N48	13.6–14.2	1.36–1.42	≥10.5	≥836	≥11.0	≥876	45–49	358–390	7.4–7.5	≤80
N50	13.9–14.3	1.39–1.43	≥10.5	≥836	≥11.0	≥876	47–51	374–406	7.4–7.5	≤80
N52	14.2–14.6	1.42–1.46	≥10.0	≥796	≥11.0	≥876	49–53	390–422	7.4–7.5	≤80
N54	14.5–15.1	1.45–1.51	≥10.5	≥836	≥11.0	≥876	51–55	430–438	7.4–7.5	≤80

Performance - M Series

(Grade)	Remanence (Br)		Coercivity (Hcb)		Intrinsic Coercive Force (Hci)		Max. Energy Product (BH)max		Density (D)	Max. Working Temperature (Tw)
(Grade)	kGs	T	kOe	kA/m	kOe	kA/m	MGOe	kJ/m³	g/cm³	℃
N35M	11.8–12.3	1.18–1.23	≥10.9	≥868	≥14.0	≥1114	33–36	263–287	7.4–7.5	≤100
N38M	12.2–12.6	1.22–1.26	≥11.3	≥899	≥14.0	≥1114	36–39	287–310	7.4–7.5	≤100
N40M	12.6–12.9	1.26–1.29	≥11.6	≥923	≥14.0	≥1114	38–41	302–326	7.4–7.5	≤100
N42M	12.9–13.2	1.29–1.32	≥11.6	≥923	≥14.0	≥1114	40–43	318–342	7.4–7.5	≤100
N45M	13.2–13.7	1.32–1.37	≥11.6	≥923	≥14.0	≥1114	43–46	342–366	7.4–7.5	≤100
N48M	13.6–14.2	1.36–1.42	≥11.6	≥923	≥14.0	≥1114	46–49	366–390	7.4–7.5	≤100
N50M	13.9–14.3	1.39–1.43	≥11.6	≥923	≥14.0	≥1114	47–51	374–406	7.4–7.5	≤100
N52M	14.2–14.6	1.42–1.46	≥11.6	≥923	≥13.0	≥1035	49–53	390–422	7.4–7.5	≤100
N54M	14.5–15.0	1.45–1.50	≥13.2	≥1051	≥14.0	≥1114	51–55	414–438	7.4–7.5	≤100

Performance - H Series

(Grade)	Remanence (Br)		Coercivity (Hcb)		Intrinsic Coercive Force (Hci)		Max. Energy Product (BH)max		Density (D)	Max. Working Temperature (Tw)
(Grade)	kGs	T	kOe	kA/m	kOe	kA/m	MGOe	kJ/m³	g/cm³	℃
N35H	11.8–12.3	1.18–1.23	≥10.9	≥868	≥17.0	≥1353	33–36	263–287	7.5–7.6	≤120
N38H	12.2–12.6	1.22–1.26	≥11.3	≥899	≥17.0	≥1353	36–39	287–310	7.5–7.6	≤120
N40H	12.6–12.9	1.26–1.29	≥11.6	≥923	≥17.0	≥1353	38–41	302–326	7.5–7.6	≤120
N42H	12.9–13.2	1.29–1.32	≥11.6	≥923	≥17.0	≥1353	40–43	318–342	7.5–7.6	≤120
N45H	13.2–13.7	1.32–1.37	≥11.6	≥923	≥16.0	≥1274	43–46	342–366	7.5–7.6	≤120
N48H	13.6–14.2	1.36–1.42	≥11.6	≥923	≥16.0	≥1274	45–49	358–390	7.5–7.6	≤120
N50H	13.9–14.3	1.39–1.43	≥11.6	≥923	≥16.0	≥1274	48–51	374–406	7.5–7.6	≤120
N52H	14.2–14.6	1.42–1.46	≥11.6	≥923	≥16.0	≥1274	49–53	390–422	7.5–7.6	≤120

Performance - SH Series

(Grade)	Remanence (Br)		Coercivity (Hcb)		Intrinsic Coercive Force (Hci)		Max. Energy Product (BH)max		Density (D)	Max. Working Temperature (Tw)
(Grade)	kGs	T	kOe	kA/m	kOe	kA/m	MGOe	kJ/m³	g/cm³	℃
N33SH	11.4–11.9	1.14–1.19	≥10.5	≥836	≥20.0	≥1592	31–34	247–270	7.5–7.6	≤150
N35SH	11.8–12.3	1.16–1.23	≥10.9	≥868	≥20.0	≥1592	33–36	263–287	7.5–7.6	≤150
N38SH	12.2–12.6	1.22–1.26	≥11.3	≥899	≥20.0	≥1592	36–39	287–310	7.5–7.6	≤150
N40SH	12.6–12.9	1.26–1.29	≥11.6	≥923	≥20.0	≥1592	38–41	302–326	7.5–7.6	≤150
N42SH	12.9–13.2	1.29–1.32	≥11.6	≥923	≥20.0	≥1592	40–43	318–342	7.5–7.6	≤150
N45SH	13.2–13.7	1.32–1.37	≥11.6	≥923	≥20.0	≥1592	43–45	342–366	7.5–7.6	≤150
N48SH	13.6–14.2	1.36–1.42	≥11.6	≥923	≥19.0	≥1512	45–49	358–390	7.5–7.6	≤150
N50SH	13.9–14.3	1.39–1.43	≥11.6	≥923	≥19.0	≥1512	48–51	374–406	7.5–7.6	≤150

Performance - UH Series

(Grade)	Remanence (Br)		Coercivity (Hcb)		Intrinsic Coercive Force (Hci)		Max. Energy Product (BH)max		Density (D)	Max. Working Temperature (Tw)
(Grade)	kGs	T	kOe	kA/m	kOe	kA/m	MGOe	kJ/m³	g/cm³	℃
N30UH	10.8–11.4	1.08–1.14	≥10.2	≥812	≥25.0	≥1990	28–31	223–247	7.5–7.6	≤180
N33UH	11.4–11.9	1.14–1.19	≥10.7	≥852	≥25.0	≥1990	31–34	247–271	7.5–7.6	≤180
N35UH	11.8–12.3	1.22–1.26	≥10.8	≥860	≥25.0	≥1990	33–36	263–287	7.5–7.6	≤180
N38UH	12.2–12.6	1.26–1.29	≥11.0	≥876	≥25.0	≥1990	36–39	287–310	7.5–7.6	≤180
N40UH	12.6–12.9	1.26–1.29	≥11.5	≥915	≥25.0	≥1990	38–41	302–326	7.5–7.6	≤180
N42UH	12.9–13.2	1.29–1.32	≥12.2	≥971	≥24.0	≥1910	40–43	318–342	7.5–7.6	≤180
N48UH	13.6–14.2	1.36–1.42	≥12.9	≥1026	≥24.0	≥1910	45–49	358–390	7.5–7.6	≤180

Performance - EH Series

(Grade)	Remanence (Br)		Coercivity (Hcb)		Intrinsic Coercive Force (Hci)		Max. Energy Product (BH)max		Density (D)	Max. Working Temperature (Tw)
(Grade)	kGs	T	kOe	kA/m	kOe	kA/m	MGOe	kJ/m³	g/cm³	℃
N30EH	10.8–11.4	1.08–1.14	≥10.2	≥812	≥30.0	≥2388	28–31	223–247	7.5–7.6	≤200
N33EH	11.4–11.9	1.14–1.19	≥10.3	≥820	≥30.0	≥2388	31–34	247–271	7.5–7.6	≤200
N35EH	11.8–12.3	1.18–1.23	≥10.5	≥836	≥29.0	≥2308	33–36	263–287	7.5–7.6	≤200
N38EH	12.2–12.5	1.22–1.25	≥11.3	≥899	≥30.0	≥2388	36–39	287–310	7.5–7.6	≤200
N45EH	13.2–13.6	1.32–1.36	≥11.3	≥899	≥30.0	≥2388	43–46	342–366	7.5–7.6	≤200

Performance - AH Series

(Grade)	Remanence (Br)		Coercivity (Hcb)		Intrinsic Coercive Force (Hci)		Max. Energy Product (BH)max		Density (D)	Max. Working Temperature (Tw)
(Grade)	kGs	T	kOe	kA/m	kOe	kA/m	MGOe	kJ/m³	g/cm³	℃
N30AH	10.8–11.4	1.08–1.14	≥10.2	≥812	≥33.0	≥2626	28–31	223–247	7.5–7.6	≤220
N35AH	11.7–12.2	1.17–1.22	≥11.0	≥876	≥35.0	≥2786	33–36	263–287	7.5–7.6	≤220
N42AH	12.9–13.5	1.29–1.35	≥12.0	≥955	≥35.0	≥2786	40–44	318–350	7.5–7.6	≤220
