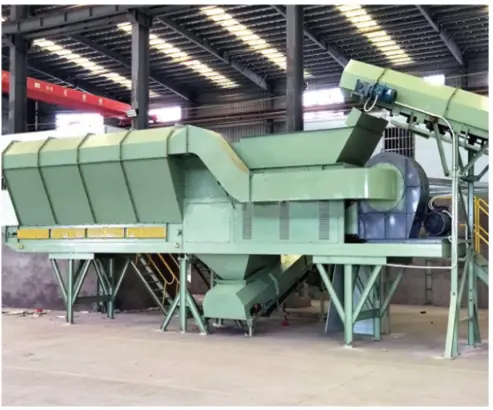

Air Separator

Air Density Separator / Specific Gravity Separator / Airflow Classifier :

With continued national focus on the recycling and utilization of construction waste resources, current construction waste treatment typically involves crushing demolished or discarded materials using jaw crushers and impact crushers, followed by vibrating screening to produce recycled aggregates.

During this process, reinforcing steel can be removed through magnetic separation and conveyed away by magnetic belt conveyors. However, lightweight impurities such as wood boards, plastics, torn fabrics, and other debris often remain mixed within the recycled aggregates and cannot be effectively removed simultaneously.

The air separator developed by Full Magnetic Tech. Co., Ltd. operates based on aerodynamic principles. Through the combined action of controlled positive and negative airflow, the system effectively separates lightweight and small materials from heavier fractions. Light materials are directed into a settling chamber, where air and materials are separated, ensuring efficient impurity removal and improved aggregate quality.

The specific gravity air separator from Full Magnetic Tech. Co., Ltd. can be customized and adjusted according to the characteristics of the materials to be processed, enhancing product purity, expanding application possibilities, and improving overall economic performance.

Features of the Full Magnetic Tech. Specific Gravity Air Separator :

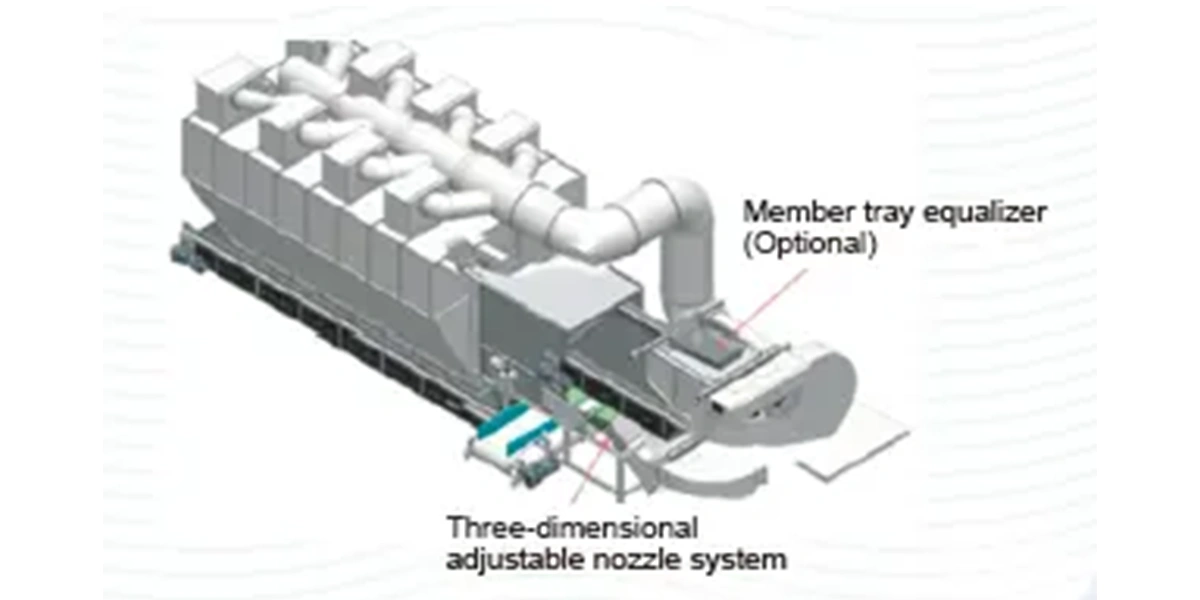

The feed conveyor utilizes a high-speed belt system, ensuring uniform material distribution and enhancing separation efficiency. An optional disc material distributor can further improve air separation performance.
The blower outlet allows adjustable air volume, air velocity, and air pressure, enabling flexible control over the types of materials being separated. The separation drum can classify large-volume combustible materials into the light fraction as required.
The light-material settling chamber is constructed with 2–3 mm galvanized steel plates, providing both corrosion resistance and structural durability.
The exhaust duct is equipped with connection ports for dust collection and deodorization systems, effectively reducing surrounding air pollution. The air chamber operates under negative pressure, minimizing dust emissions.

The system can be configured with either a single-drum or dual-drum air separation unit according to sorting requirements. All functional modules are designed with a modular structure, allowing flexible addition or reduction of functions and facilitating maintenance. The equipment has no significant wear parts, resulting in minimal downtime for servicing.

Air Separator

Waste Air Separator / Light Material Separation Equipment / Waste Plastic Air Separator – Product Introduction Air separators are generally classified into three types: positive pressure separation, negative pressure separation, and combined positive–negative pressure separation.

Based on aerodynamic principles, the system utilizes the combined action of controlled positive and negative airflow to effectively separate lightweight and small materials from heavier fractions within the waste stream.

Air Separator Introduction

Air separators are generally classified into three types: positive pressure separation, negative pressure separation, and combined positive–negative pressure separation. Based on aerodynamic principles, the system utilizes the combined action of controlled positive and negative airflow to separate lightweight and small materials from heavier fractions. The separated light materials are directed into a settling chamber, where the air and light materials are further separated. The light fraction is discharged via a light-material conveyor, while the heavy fraction is discharged through a heavy-material conveyor, ensuring efficient and continuous material separation.

Sorted Materials

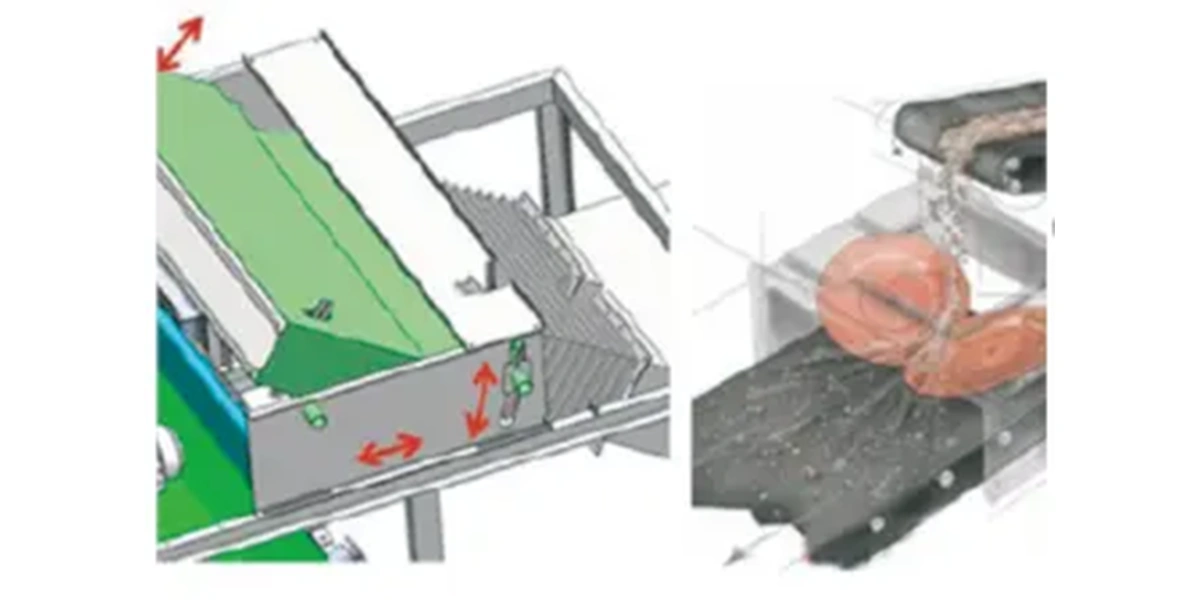

Light materials: Plastic bags, woven bags, paper scrapsHeavy materials: Mixed materials with significant differences in density (specific gravity) Working Principle Diagram of the Light Material Air Separator:

This product mainly consists of a housing, frame, air supply system, return air system, and conveying system. The air supply and return air systems work together to create a controlled airflow pattern inside the chamber, which drives lightweight waste materials forward to the discharge hopper of the conveying system. Both sides of the conveying system are equipped with sealing plates and rubber guide chutes, effectively preventing plastic materials from wrapping around the lower belt rollers. The fan air inlet can be adjusted according to the characteristics of the processed materials, providing high operational flexibility.

Equipment Performance Features

Negative-pressure separation design, preventing dust leakage.
Infinitely adjustable air velocity, suitable for materials with different properties, including high-moisture materials.
Modular design, delivering reliable performance and low maintenance costs.
No additional air supply or filtration system required (except for special requirements).
Optional dual-drum separation configuration, enabling classification into light, medium, and heavy fractions.
Minimal wear parts, resulting in extremely low downtime for maintenance.
Integrated electrical and mechanical design, allowing plug-and-play installation on site.

Air separator

Air Separator / Airflow Classifier / Specific Gravity Density Screen

The air separator, also known as a density separator or specific gravity screen, is a traditional separation method widely used in solid waste treatment and resource recovery industries. In developed regions such as Europe and North America, air separators are considered essential equipment in solid waste processing and recycling systems.

Working Principle

The air separator operates based on aerodynamic principles. Through the combined action of controlled positive and negative airflow, lightweight and small materials are separated from heavier materials. Light materials are carried upward or horizontally into a settling chamber, where the materials are separated from the airflow. The light fraction is discharged via a lightmaterial conveyor. Heavy materials, which cannot be supported by the upward airflow due to their weight,settle onto the heavy-material discharge conveyor and are transported out of the system.

Applications

The air separator is suitable for processing:

Construction and renovation waste
Incinerator bottom ash from municipal solid waste
Aged landfill waste

Separated Materials

Light materials: Plastic bags, woven bags, paper scraps.
Heavy materials: Mixed materials with significant differences in density (specific gravity).

Product Features:

Negative-pressure separation design with no dust leakage.
Infinitely adjustable air velocity to accommodate materials with different properties, including high-moisture materials.
Modular design with reliable performance and low maintenance costs.
No additional air supply or filtration system required (except for special requirements).
Optional dual-drum configuration for separation into light, medium, and heavy fractions.
Minimal wear parts and extremely low downtime for maintenance.
Integrated electrical-mechanical design for plug-and-play on-site installation.
