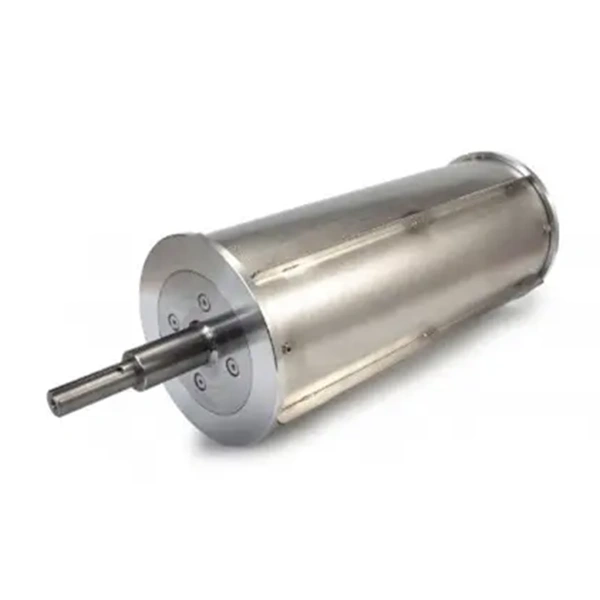

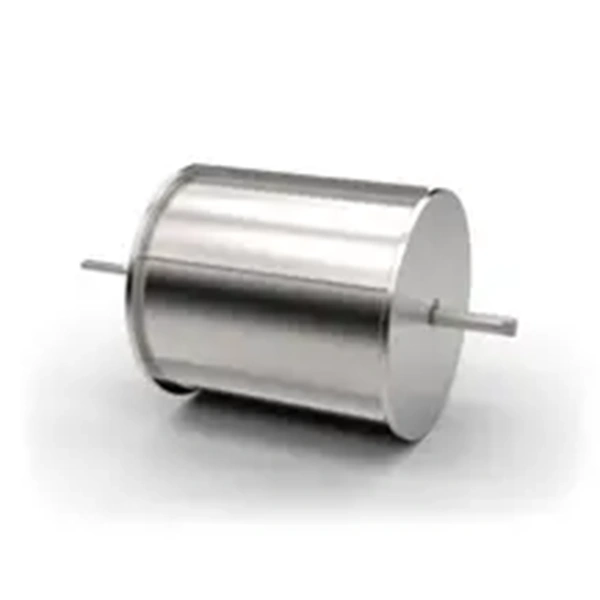

Magnetic Drum Separator(MDS)
Working principle
MDS type magnetic drum (MDS type magnetic drum’s structure same as MP type parameters, more used for the purification of powdery, granular, small block materials, or the recycling of iron, to prevent the crusher, grinding machine, press damage and wear plays a reliable protective role.
Characteristic:
- Continuous self-cleaning design is suitable for automated production lines.
- The surface material can be 304 or 316 stainless steel, which has good corrosion resistance.
- Magnetic fields do not require electricity.
- Magnetic field strength 1000-8000 Gs.
Application:
Magnetic drums are mainly used in industries from iron ore, grain, sand, gravel, plastic, wood, waste, broken glass, etc.
Product Parameters
| Type | Drum Diameter(mm) | Drum Length | Magnetic Intensity (GS) |
Suitable Belt Speed | Material Thickness ≤ (mm) |
Bearing Seat Spacing | Weight (kg) |
|---|---|---|---|---|---|---|---|
| MDS-22/50 | 220 | 410 | 1000-8000 | ≤2.5m/s | 40 | 560 | 40 |
| MDS-27/50 | 273 | 510 | 60 | 660 | 55 | ||
| MDS-32/60 | 320 | 620 | 60 | 770 | 80 | ||
| MDS-40/60 | 400 | 830 | 80 | 980 | 100 | ||
| MDS-50/60 | 500 | 1030 | 80 | 1180 | 160 | ||
| MDS-60/60 | 600 | 1230 | 100 | 1380 | 240 | ||
| MDS-80/80 | 800 | 1230 | 120 | 1380 | 400 | ||
| MDS-80/100 | 800 | 1430 | 140 | 1580 | 800 |
