Working Principle

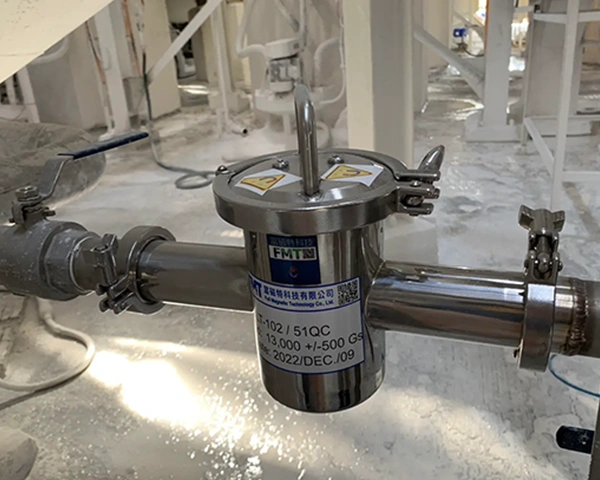

Magnetic liquid trap separators are mainly used to filter and remove iron impurities and other magnetic particles from materials of different viscosities such as fluids and semi-fluids, preventing raw materials and equipment from being contaminated, and ensuring product purity. At the same time, it can protect the downstream production equipment.

Structural Features:

• Surface Treatment: mirror polishing or wire drawing treatment or sandblasting, which can reach food grade standards.
• Shell Material: SUS304, SUS316, SUS316L.
• Magnet: Using high-strength rare earth permanent magnet material, the surface magnetic field can reach more than 14000 Gauss.
• Working Temperature: The standard working temperature is lower than 80℃, and the maximum working temperature is 350℃ according to the special needs of customers.
• Pressure Resistance: the flange is generally ≤ 10 kg (1.0 mpa), and the clamp is generally ≤ 5 kg (0.5 mpa). If there are special needs, it can be designed separately.
• According to the cleaning method, provide ordinary type and easy-to-clean type for Choice.
• In order to meet the thermal insulation requirements, a design thermal insulation layer can be provided.
• At the same time, it can be customized according to customer requirements.

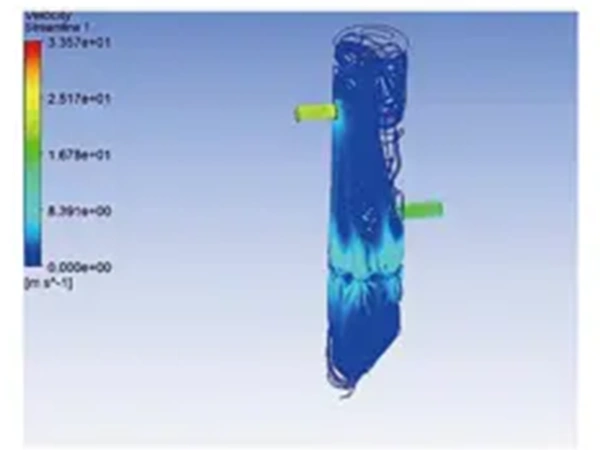

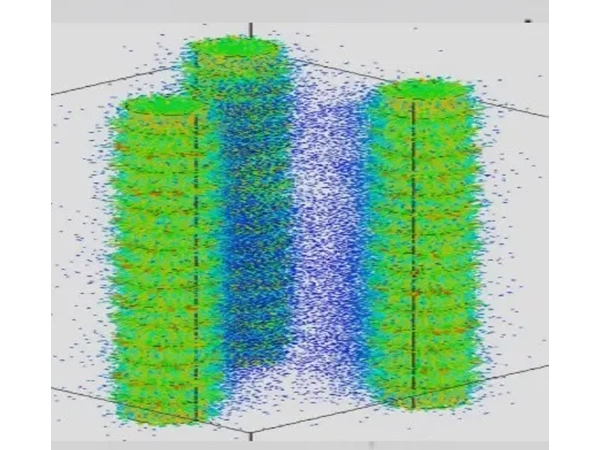

Simulation diagram of water flow in fluid pipeline

Other special designs:

1. Insulation Type

Removing iron contamination from liquid and semi-liquid materials of various viscosities, keeping materials pure and protecting equipment. The thermal insulation magnetic liquid iron separator has a sandwich layer, which can be filled with oil and water insulation materials to solve the insulation difficulty of liquid passing through the body. It is perfect for removing ferrous contamination from jams, chocolates, syrups, etc.

---

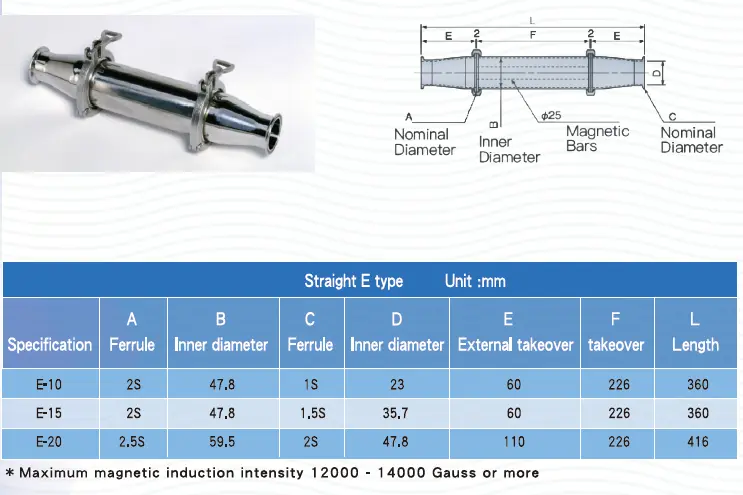

2. Straight E Type

The material flow quickly enters the pipe body under the action of the pressure difference,and the pipe is distributed in a cone shape. The contaminated iron material is adsorbedand held by the magnet when it is close to the magnetic rod, and the clean material product continues to flow out of the body.

---

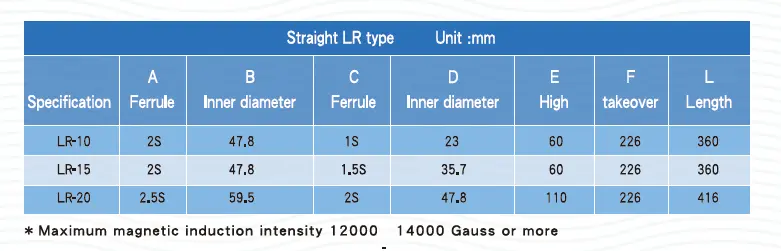

3. Straight LR Type

---

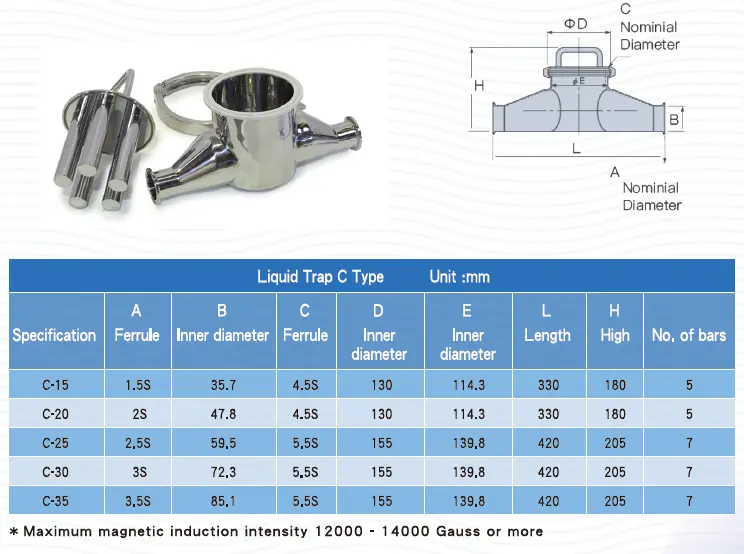

4. Liquid Trap Type C Type

Schematic diagram of 3 kinds of fluid pipeline iron remover

---

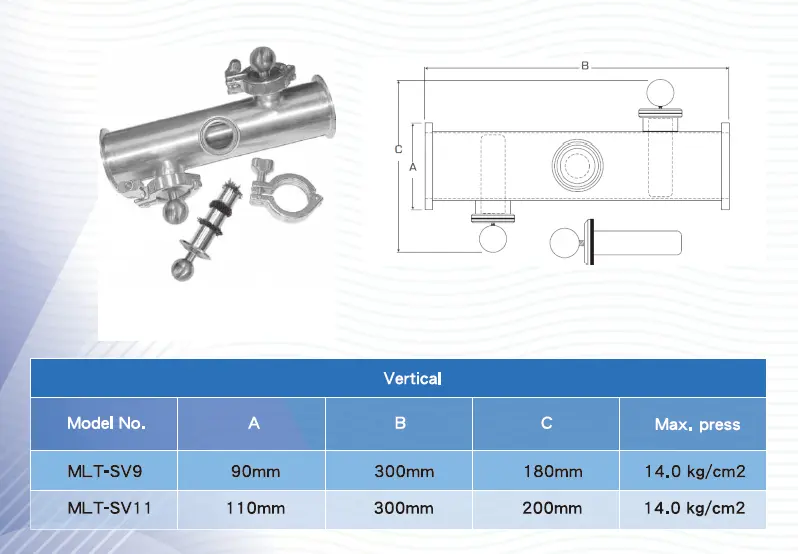

Vertical SV Type

Vertical In-Line Iron Separator (SV Series), which effectively controls foreign debris and reduces the risk of capturing tiny metal debris in viscous & slurries and emulsion lines.

---

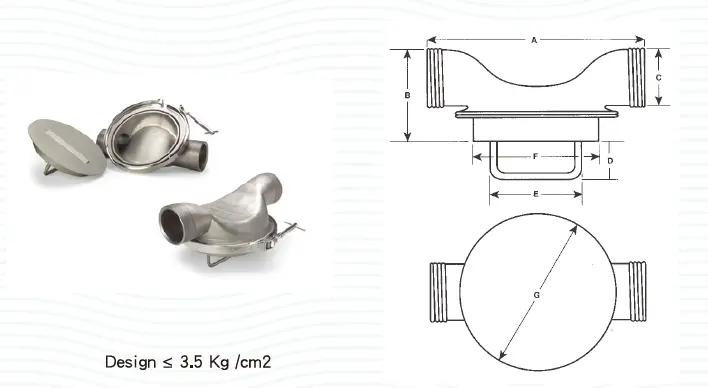

6. Liquid Trap Type U Type

The U-shaped fluid uses a magnetic field to remove fine iron matter such as rust, scale or screen mesh. U-Flow removes iron impurities from hard-to-flow or lumpy products like vegetables, salsa, or meat paste.

U-Flow's special body design features gradually narrowing filtration to gently guide product onto A smooth magnetic surface.

---

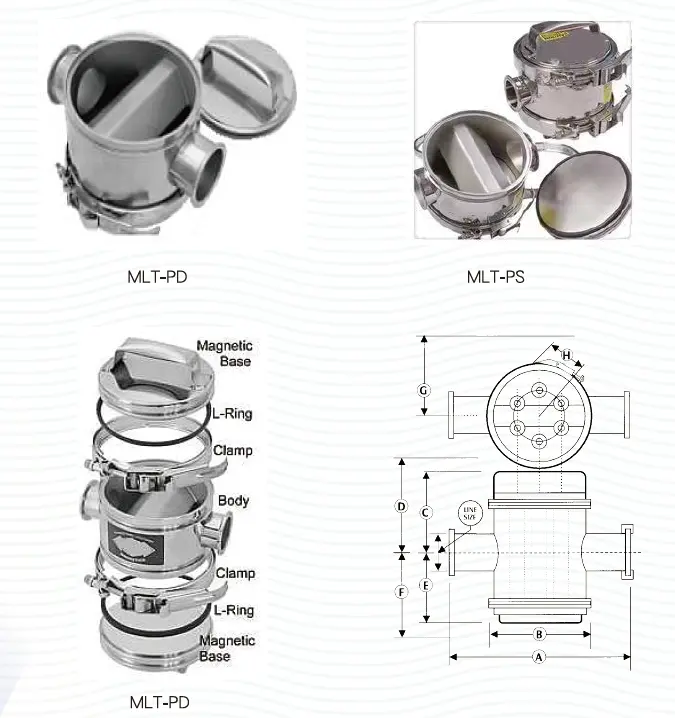

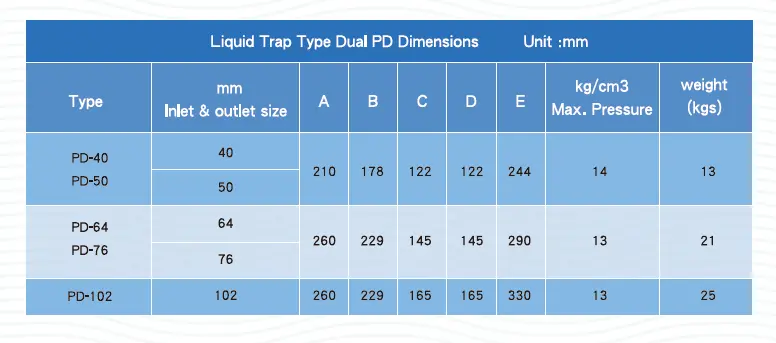

7. Liquid Trap Type PS&PD Type

---

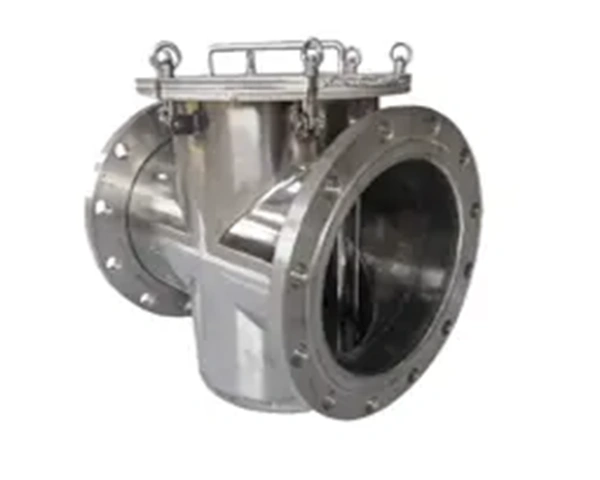

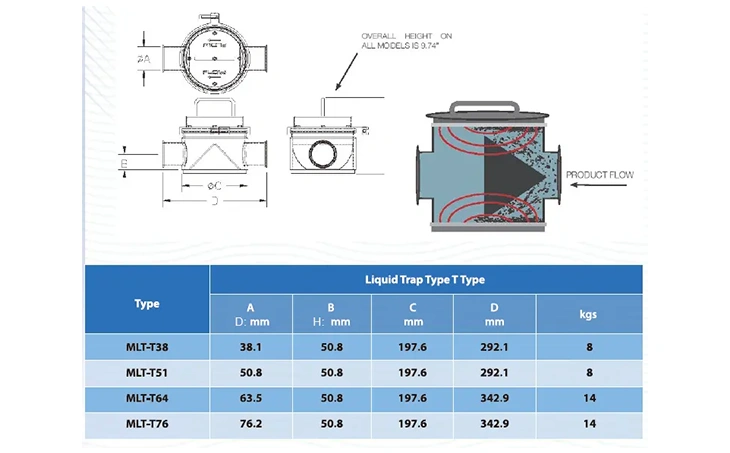

8. Liquid Trap Type T Type

T-shaped plate design The baffle in the cavity directs the product flow to the direction of the magnetic field, causing the iron material to contact the magnetic plate, which expands the capture area in the trap and slows down the product speed, thereby increasing the capture capacity of the entire magnetic plate. When the filtration is completed, remove the card Contaminants can be easily removed by lifting the magnetic plate with a hoop and cleaning the surface by hand.

---

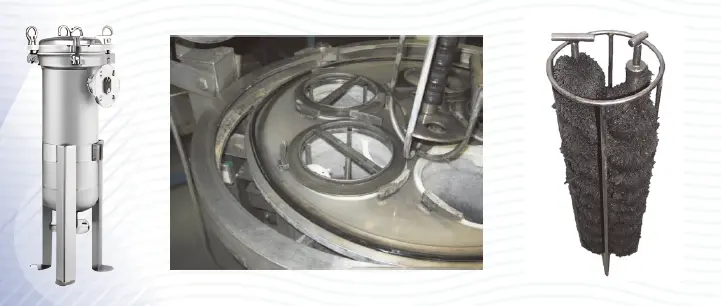

9. Filters

The filter is an indispensable filtering device in the system, the purpose is to filter the impurities in the material, ensure the smooth flow of the material and protect the important components inside the system. When the material enters the filter cartridge with the filter screen or other filter components, the impurities are blocked, and the rest of the material is discharged from the outlet of the filter.

---

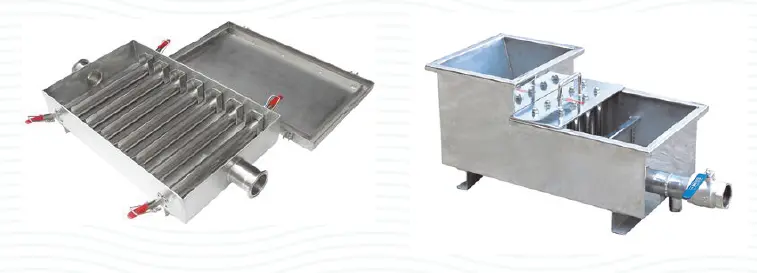

10. Overflow Type

The overflow filter is to increase the water stroke as much as possible in a limited space through multiple turns of the water flow, so as to achieve a better filtration effect.
