Working Principle

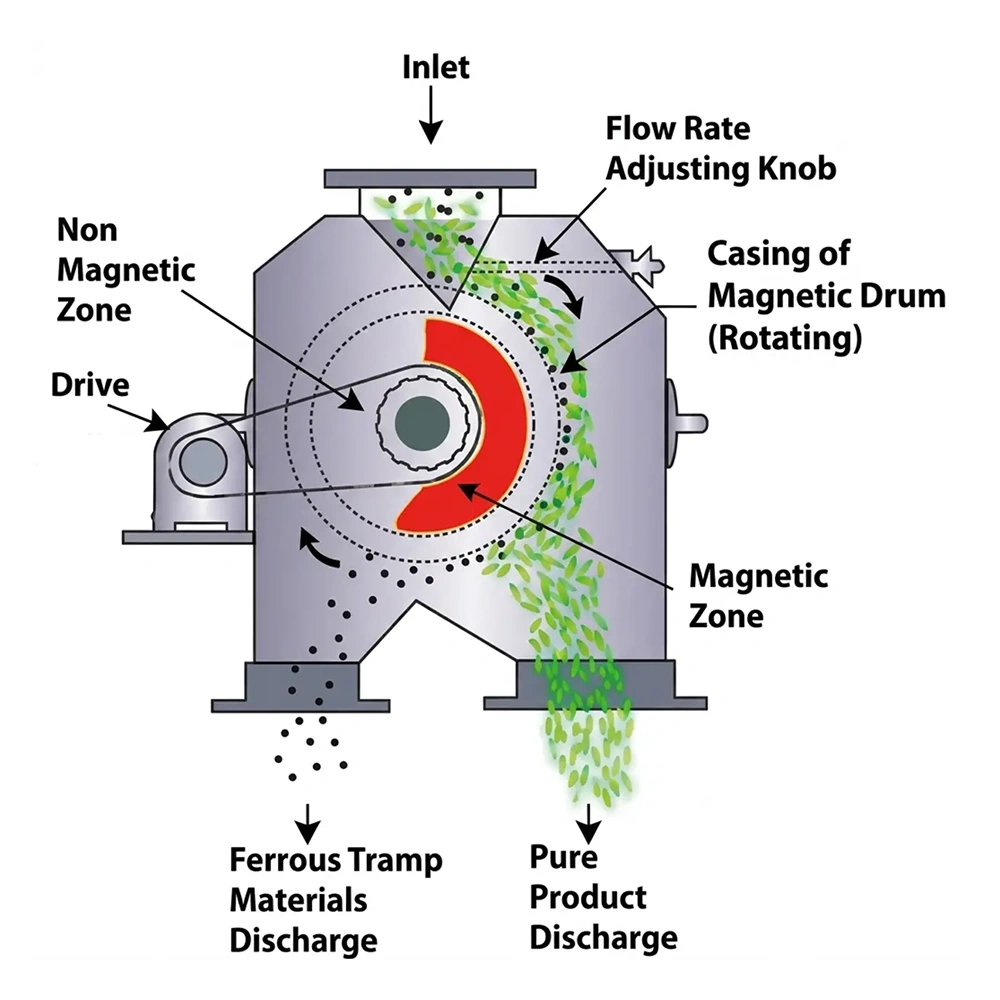

The material to be treated enters the top of the drum magnetic separator and flows over the surface of the drum, all non-ferrous metal products that are not affected by the magnets will fall freely from the drum into the clean material flow as the drum shell rotates around the fixed magnetic field. Any ferrous impurity metal will be captured by the magnetic field and held on the surface of the drum. As the drum rotates, the metal is carried through the diverter and released out of the magnetic field.

Characteristic:

Box Surface Treatment: wire drawing or sandblasting.
Box Material: SUS304, SUS316.
Magnetic Field Strength: 1500Gs–12000Gs.
Working Temperature: 80℃- 250℃.
Import and Export Methods: flanges, crimping, straight pipes, etc. can be used.

Applicable Fields:

It is suitable for processing powder materials and granular materials, and sorting iron impurities with larger particles with a diameter of more than 0.5mm. Suitable for fine chemicals, sugar factories, food factories etc.

Technical Parameters

Type	φ A Drum Diameter mm	B Length mm	C Width mm	D Width mm	W Drum Length mm	H Height mm	Weight Kg	Power Kw
EDMS-2130	215	420	290	450	280	500	105	107
EDMS-2150	215	620	290	450	480	500	145	164
EDMS-2180	215	920	290	450	780	500	215	249
EDMS-3140	315	520	360	550	380	650	252	157
EDMS-3160	315	720	360	550	580	650	320	211
EDMS-3190	315	1020	360	550	880	650	422	300
EDMS-4050	400	620	435	635	480	800	392	267
EDMS-4070	400	820	435	635	680	800	496	368
EDMS-40100	400	1120	435	635	980	800	652	521
EDMS-40118	400	1320	435	635	1180	800	756	691
