Working Principle

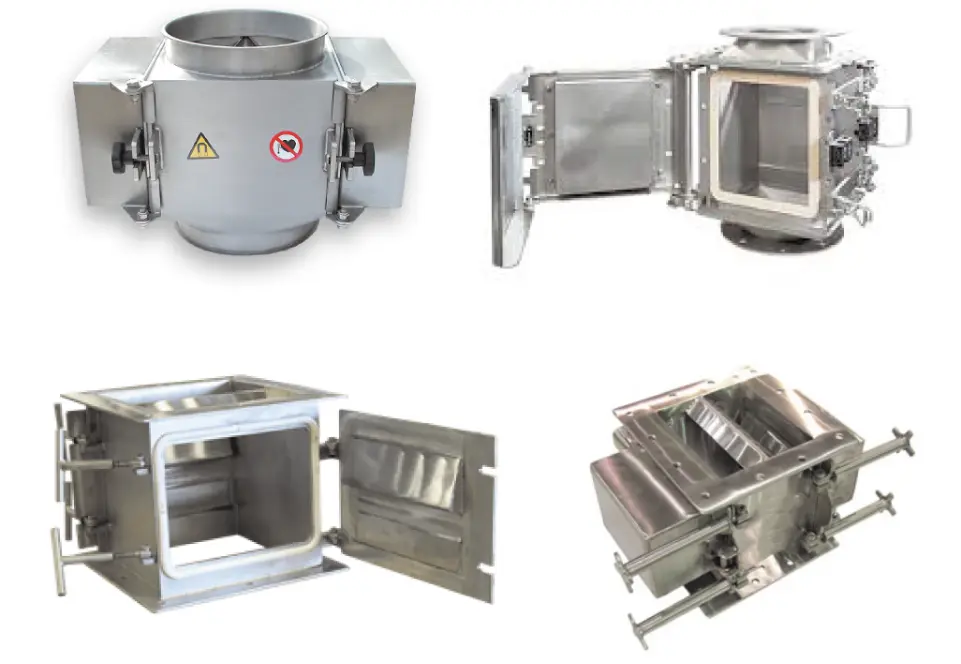

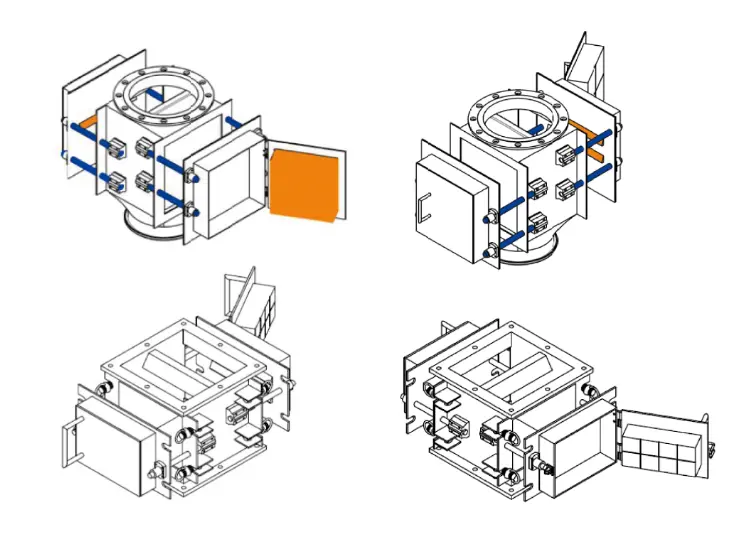

Suitable for removing medium to large iron materials that would bridge or block the product if filtered through a magnetic grid. It also has a drawer-type and hinge-mounted design for quick cleaning。

Application:

Plate housing magnet are widely used in food, feed, pharmaceutical, grain, chemical and other fields to remove iron and ferrous fine powder in anti-flow bulk materials that are easily blocked by debris. The stainless steel housing can be easily installed on closed jet lines or directly on processing equipment.

Features :

• Surface Treatment: mirror polishing, wire drawing or sandblasting.
• Material: stainless steel SUS304 or SUS316 or SUS316L.
• Magnet: high-strength rare earth permanent magnet material，Surface magnetic field strength is above 1500-10000 Gauss.
• Working Temperature: The working temperature of conventional products is lower than 80℃, and the highest temperature resistance 350℃ products can be provided.
• Installation Method: round and square flange or crimping and straight pipe.
