Working Principle

The Magnetic Bullet Separator is a compact, efficient in-line magnetic separator for extraction of ferrous contaminants from gravity conveying or pneumatic piping. Usually installed in pneumatic lines for food powder and high speed feeding lines.

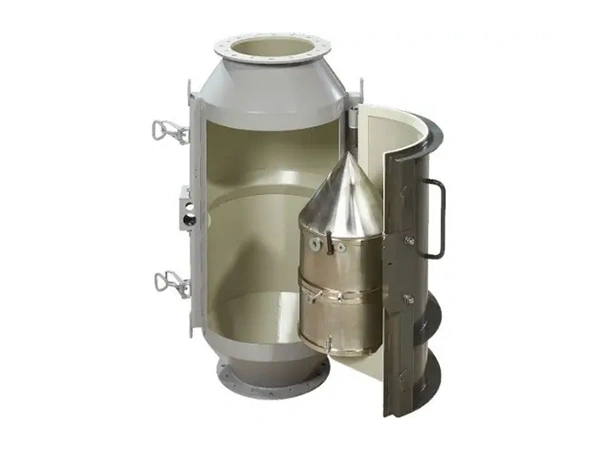

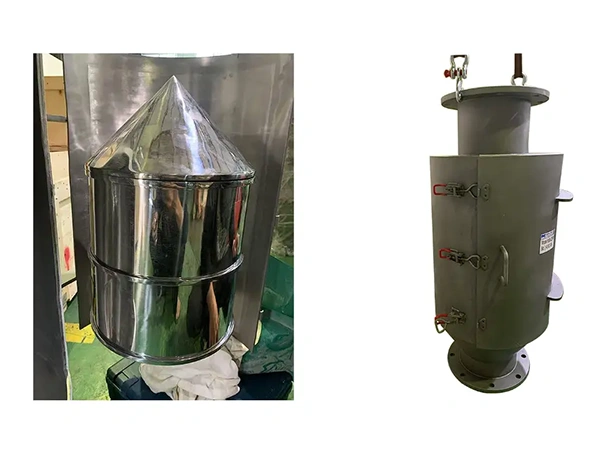

The separator is constructed of stainless steel, and the dry, free-flowing product flows through the valve body and through the cartridge magnet cartridge, expelling contaminants. Magnetic separators can be horizontal or vertical to make the flow up or down, and internal deflectors ensure product transfer to the bullet magnets with minimal turbulence and no clogging.

Structural Features:

Surface Treatment: mirror polished, brushed or sandblasted, up to food grade requirements.
Shell Material: stainless steel SUS304 or SUS316 or SUS316L.
Magnet: rare earth permanent magnet or ferrite magnet. Surface magnetic field strength is 1500 - 12000 Gauss or more.
Working Temperature: Ferrite: ≤80℃，100℃–250℃, NdFeB: ≤80℃，100℃–220℃.
Installation Type: flange type, buckle type, etc. to provide options.

Equipment Parameters:

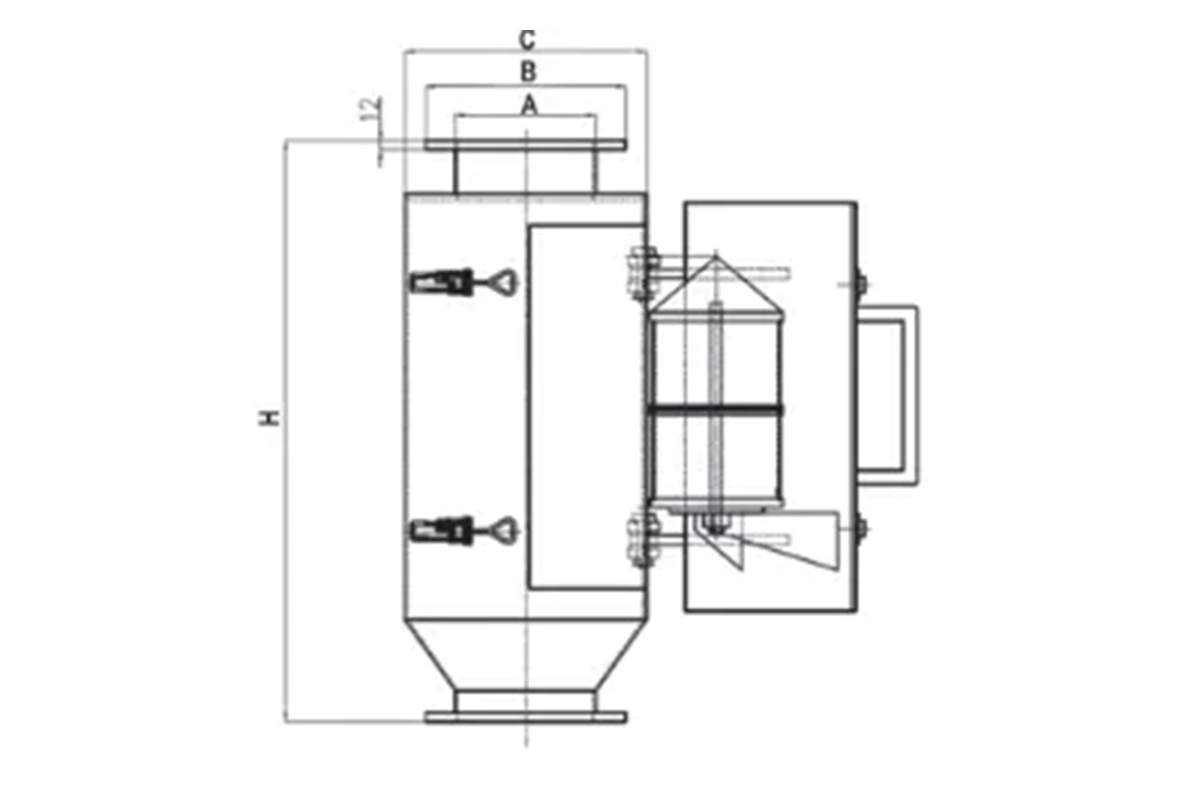

Type	φ A mm	φ B mm	φ C mm	H mm	Weight (Kg)
MBS-50	51	150	114	380	9
MBS-65	76	165	168	540	20
MBS-100	100	185	220	590	35
MBS-150	150	225	275	655	50
MBS-200	198	275	345	760	100
MBS-250	248	325	430	850	120
MBS-300	298	395	485	880	145
MBS-400	395	480	600	1100	230
MBS-500	500	584	780	1200	500
MBS-600	600	700	935	1450	600
MBS-700	700	800	1000	1650	800
