Working Principle
The material on the conveyor belt passes under the belt-type magnet, the ferrous metal is attracted to its surface, and the pure product continues along the conveyor belt as usual. A continuously moving belt carries the ferrous metal to one side of the conveyor, where it breaks away from the magnetic field and falls down.
The cross belt magnetic separator has a simple design, with two pulleys installed on the frame for both sides of the permanent magnet block. Self-unloading magnetic separators are designed for easy installation and can be mounted on a conveyor head pulley or, most commonly, on a conveyor belt.
The permanent magnets will retain metal impurities even during power outages and surges. Extended uptime, lower maintenance costs and a metal-free product.

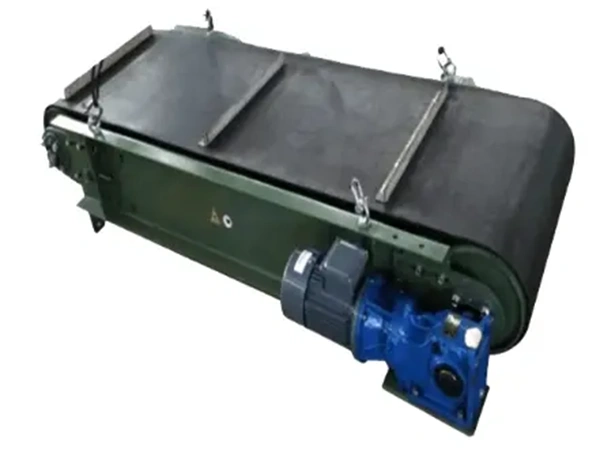

Actual performance & installation

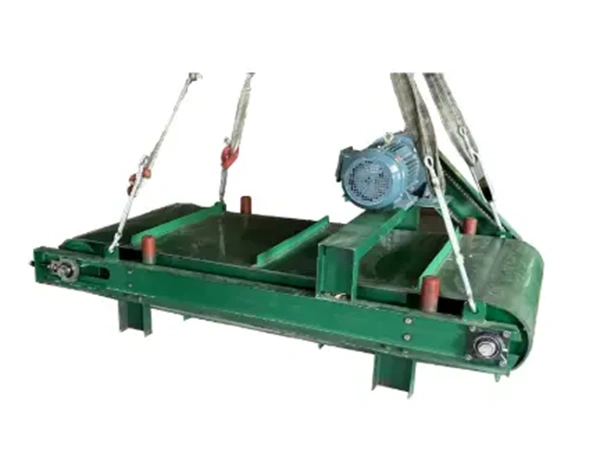

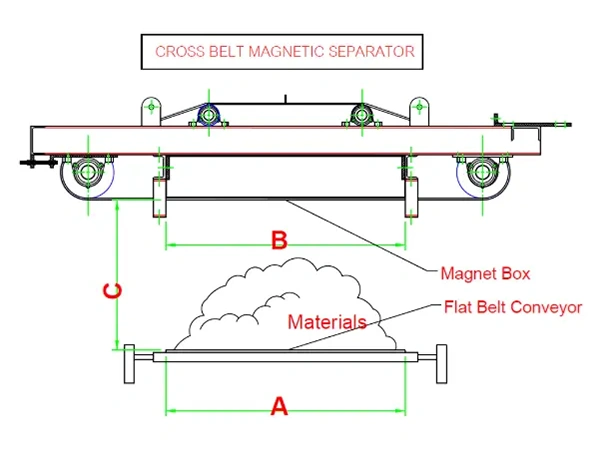

Suspension Method
Technical Parameters
| Type | Applicable Conveyor Width (mm) |
Rated Suspension Height (mm) |
Material Burden Depth (mm) |
Driving Power (kw) |
Applicable Conveyor Speed (m/s) |
Overall Dimensions L X W X H (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|---|
| CBM-5 | 500 | 180 | ≤ 100 | 1.5 | ≤ 4.5 | 1650X835X940 | 600 |
| CBM-6 | 600 | 200 | ≤ 125 | 1.5 | ≤ 4.5 | 1700X935X940 | 700 |
| CBM-6.5 | 650 | 200 | ≤ 150 | 1.5 | ≤ 4.5 | 1750X985X940 | 700 |
| CBM-8 | 800 | 250 | ≤ 200 | 2.2 | ≤ 4.5 | 1900X1140X960 | 800 |
| CBM-10 | 1000 | 300 | ≤ 250 | 3.0 | ≤ 4.5 | 2140X1350X1010 | 1200 |
| CBM-12 | 1200 | 350 | ≤ 300 | 4.0 | ≤ 4.5 | 2340X1550X1060 | 1400 |
| CBM-14 | 1400 | 400 | ≤ 350 | 4.0 | ≤ 4.5 | 2540X1750X1060 | 1700 |
| CBM-16 | 1600 | 450 | ≤ 400 | 5.5 | ≤ 4.5 | 3040X1550X860 | 2100 |
| CBM-18 | 1800 | 500 | ≤ 450 | 7.5 | ≤ 4.5 | 3580X2450X1210 | 2200 |
| CBM-20 | 2000 | 550 | ≤ 500 | 7.5 | ≤ 4.5 | 3800X2700X1300 | 2500 |
